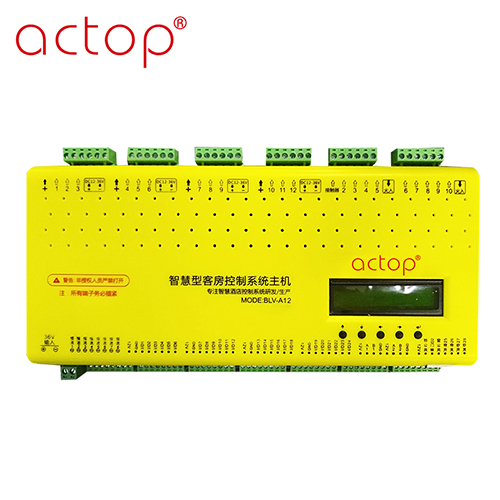

Chip:
Ø The host adopts 32-bit ARM chip,
Ø It has strong programmability and extensibility;
Performance:
Ø Power input: AC 110v-240v external replaceable power supply, which can be flexibly selected according to the power of field dimming lamp
Ø Purchase arm master, hardware TCP / IP chip
Ø 10 way 10A relay, 5-way 10A fuse tube, group design, support different working voltage load equipment, fuse tube built-in replaceable
Ø 4-way 2A relay, supporting two curtain motors
Ø A set of dedicated interface for doorbell, supporting multiple doorbells
Ø 12 channels of constant voltage dimming circuit, the maximum load power of each circuit is 100W, and the brightness of multiple lights can be adjusted in one circuit
Ø 8-way constant current circuit
Ø 24 channel digital (weak current) input and output
Ø The two-way RS-485 bus is compatible with different communication modes, 485 protocol of different communication modes and other peripherals
Ø LCD display, intuitive operation, complete information, display IP, trigger signal, equipment status, etc
Parameters:
Ø Size: 275mm * 150mm * 40MM
Ø Power supply: external replaceable power supply
Ø Current: maximum power consumption (no load) 1.2A
Ø 10 circuit 10A relay products, a group of 10A fuse tubes for every 5 circuits
Ø 4-way 2A relay
Ø A set of dry contact doorbell interface
Ø 12 constant voltage dimming circuits, the maximum load power of each circuit is 100W, which can adjust the brightness of multiple lights in one circuit
Ø 8-way constant current circuit
Ø Weak current input and output: 24 channels, dry node key
Ø Two RS-485 bus interfaces
Ø Cable protocol: TCP / IP, UDP
Ø LCD display
Software configuration:
Ø Local deployment and cloud deployment
Ø The backstage can control all the equipment in the room
Ø The background can quickly locate the abnormal state of the room
Ø One click remote upgrade and configuration change in the background
Ø Background remote equipment air conditioning on time (set by season, automatic management)
Ø The exhaust fan can be set to open at a fixed time in the background
Ø B / S architecture is adopted
Ø The background can support cloud management
